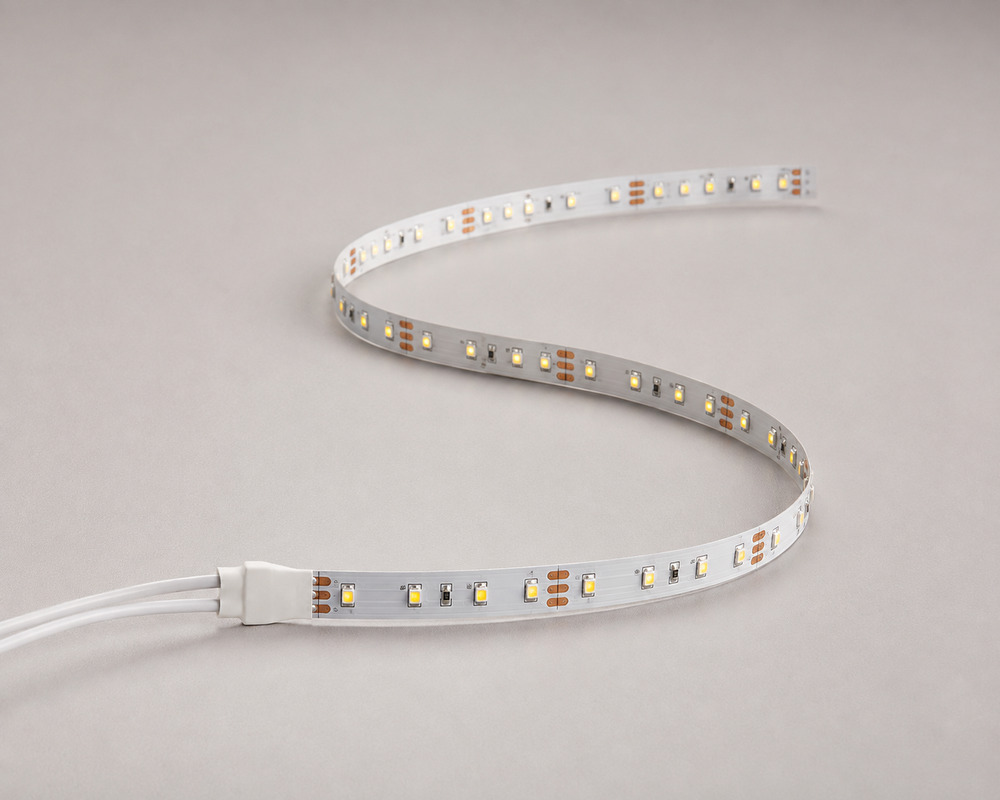

Application-Defined Flexible Lighting
Work with a custom LED strip light manufacturer on the complete installed assembly. VST coordinates the flexible board, illuminated lengths, optical effect, and connection layout with your profile or housing. The design accounts for circuit segmentation and heat transfer as well as the visible line of light.
Begin with the run layout, channel section, and intended lighting effect; identify any fixed power or connection points.

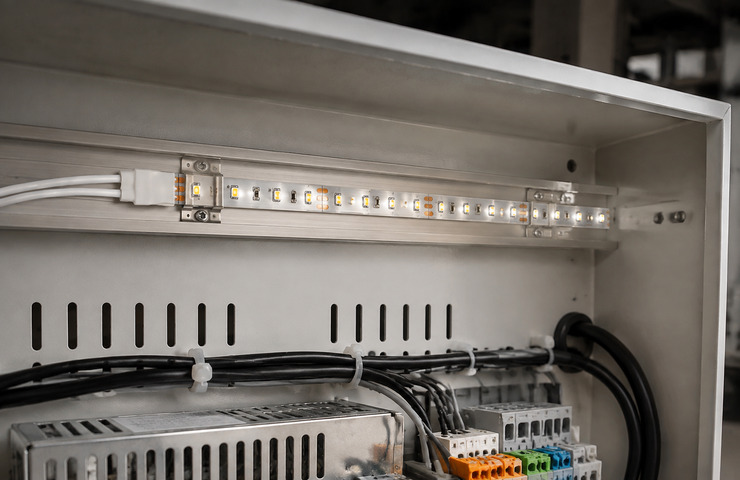

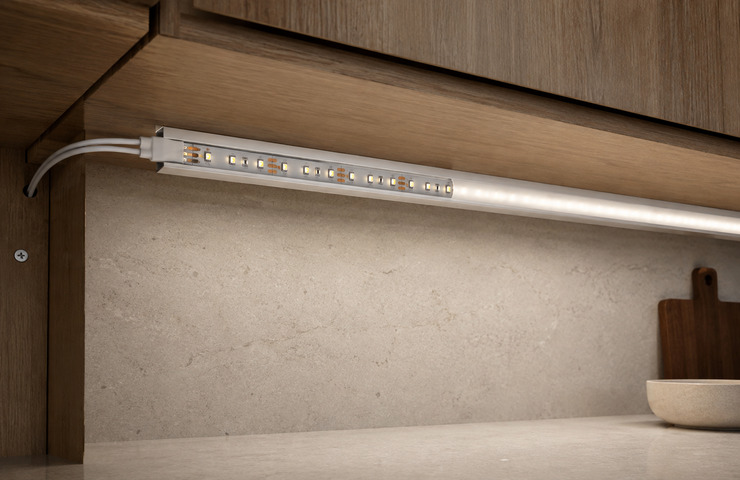

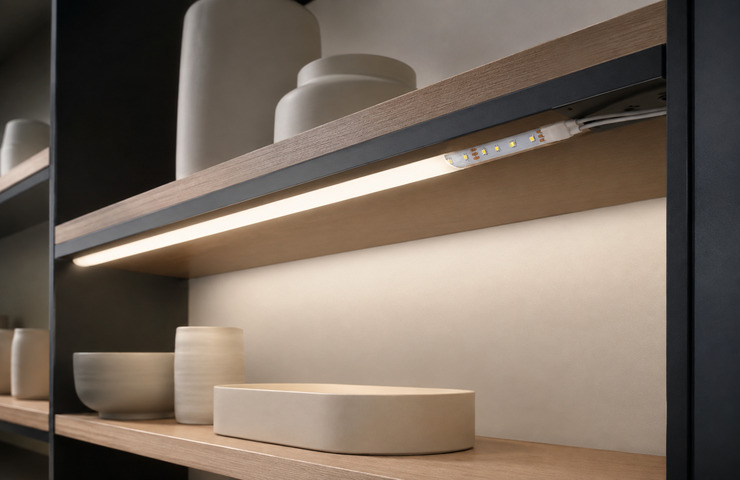

Custom LED strip lights face different constraints along furniture channels, display edges, and equipment housings. A custom LED strip light supplier should connect each layout to its installed optical depth, power route, and access needs.
Purchasing risk: Cutting at the wrong position can produce an unusable section or dark gap.
Confirm: Required active lengths and permitted join positions.
VST solution direction: Match the section plan to workable circuit segmentation before defining the delivery format.
Purchasing risk: A long power path can undermine the intended lighting effect.
VST solution direction: Evaluate feeds, cable paths, and section loading as a complete circuit rather than extending a short sample.
Purchasing risk: A board that fits the channel may still leave no room for the harness.
Confirm: Mating connector envelope and latch clearance.
VST solution direction: Include the lead bend and retention features in the installed width and end-clearance assessment.

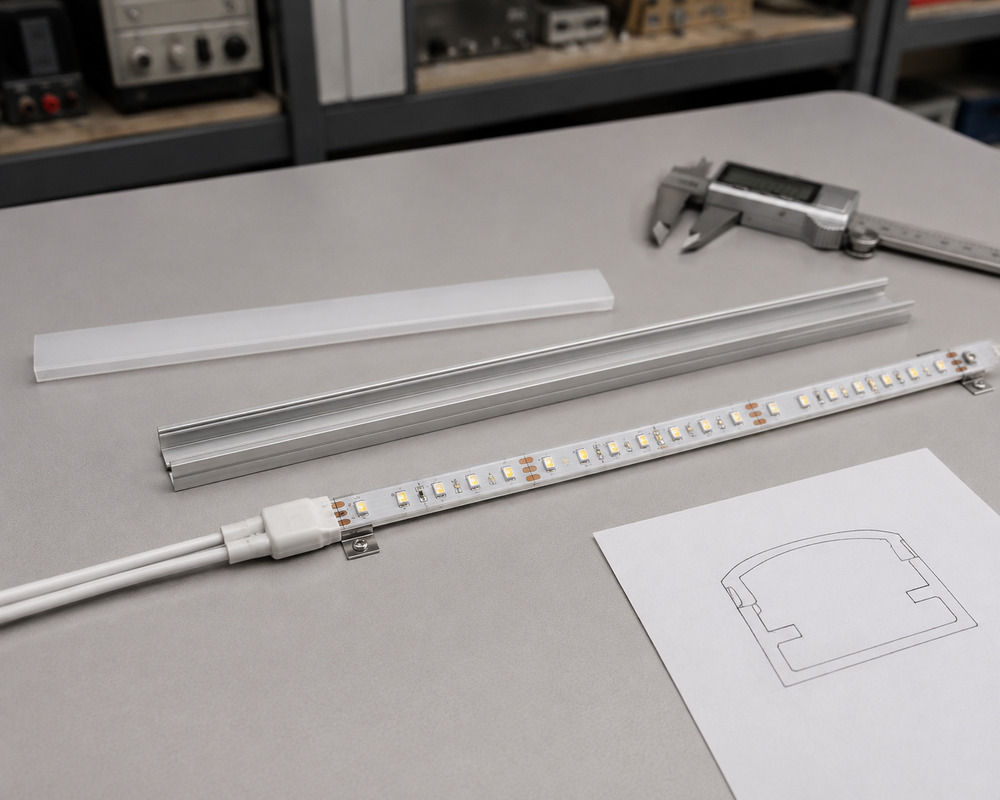

Moving from an existing platform to a dedicated circuit changes the work required from a custom LED strip light factory. Define the required geometry and light effect together, then weigh segmentation, conductor space, and assembly access.

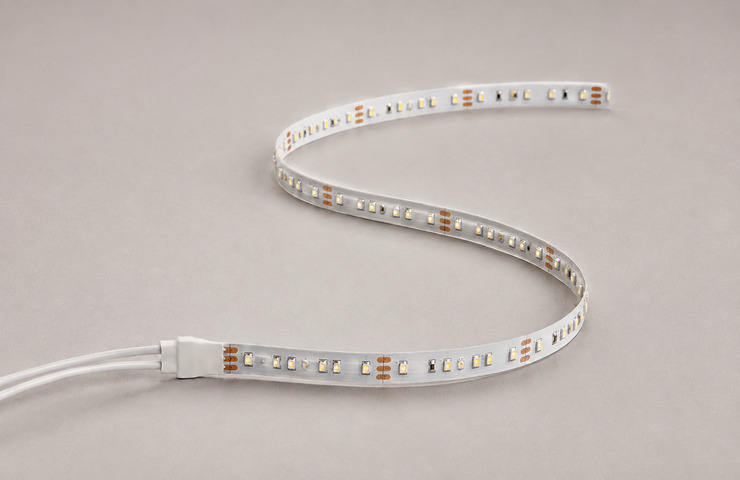

A custom LED strip can use a defined width, circuit segment, pad arrangement, and finished-section plan. Shorter repeated product lengths may need a different segmentation approach; arbitrary cuts cannot replace a workable circuit design.
Buyer input: Fixed join positions and maximum dark gaps.

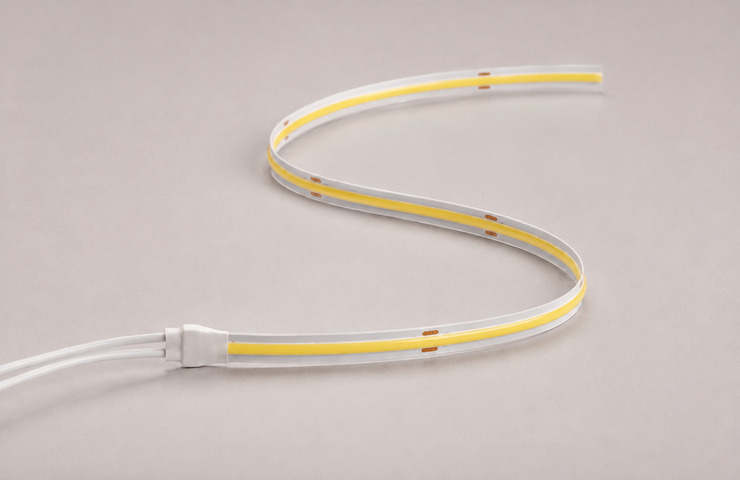

Customizable LED strips may use continuous-output or discrete LED layouts with project-defined color and light targets. Source concealment depends on diffuser distance as well as pitch, while output choices change the electrical and thermal load.
Buyer input: Required color reference and minimum viewing distance.
Feed positions, conductor paths, branch arrangements, and control channels can follow the installation. A layout of custom LED strip lights with long or multiple branches needs power distribution planned across the whole route.
Buyer input: Driver/controller interface and cable-run lengths.
Pad access, flying leads, harnesses, polarity, and connector positions can be developed for assembly. Quick connections may simplify installation but increase the envelope and the clearance needed for retention and servicing.
Buyer input: Connector pinout and permitted cable-exit side.
The support surface, adhesive interface, coating, or encapsulation can be evaluated for the exposure. Added protection can change final dimensions, flexibility, and heat transfer, so a bare-board fit does not establish protected-assembly fit.
Buyer input: Mounting material and actual moisture or cleaning exposure.

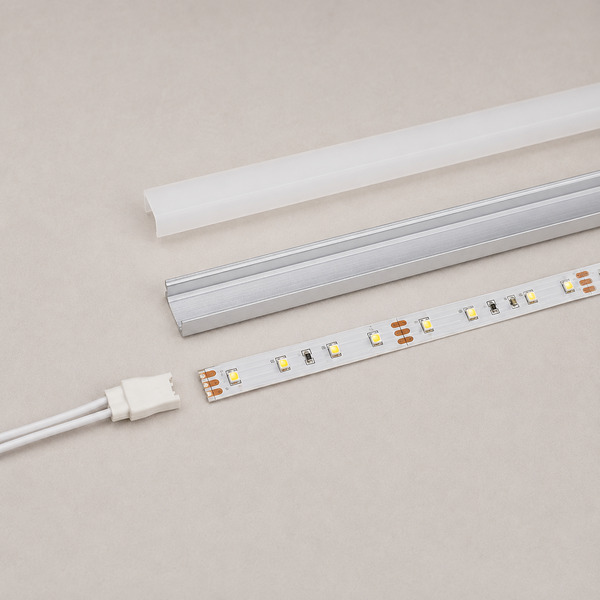

For custom LED strip lights, choose the construction by installed appearance and access. A custom LED strip OEM supplier should compare both layouts behind the same diffuser rather than assume one is always superior.
| Decision factor | Continuous-output COB Layout | Discrete SMD Layout | Buyer guidance |
|---|---|---|---|
| Visible line | Favors continuous appearance at shallow optical depth | Source concealment depends strongly on pitch and diffuser distance | |
| Circuit segmentation | Cut positions follow the chosen continuous circuit | Defined pads support selected section and wiring arrangements | |
| Connection access | Pad and connection method need construction-specific planning | Visible pads can simplify selected harness operations | |
| Main compromise | Cut locations and connection methods are construction-specific; local repairs may require replacing a complete circuit segment. | Shallow diffusers can expose individual LED sources | |
| Thermal comparison | Measure the assembly on the intended support | Use the same mounting and operating conditions | Neither layout is automatically cooler in every installation. |

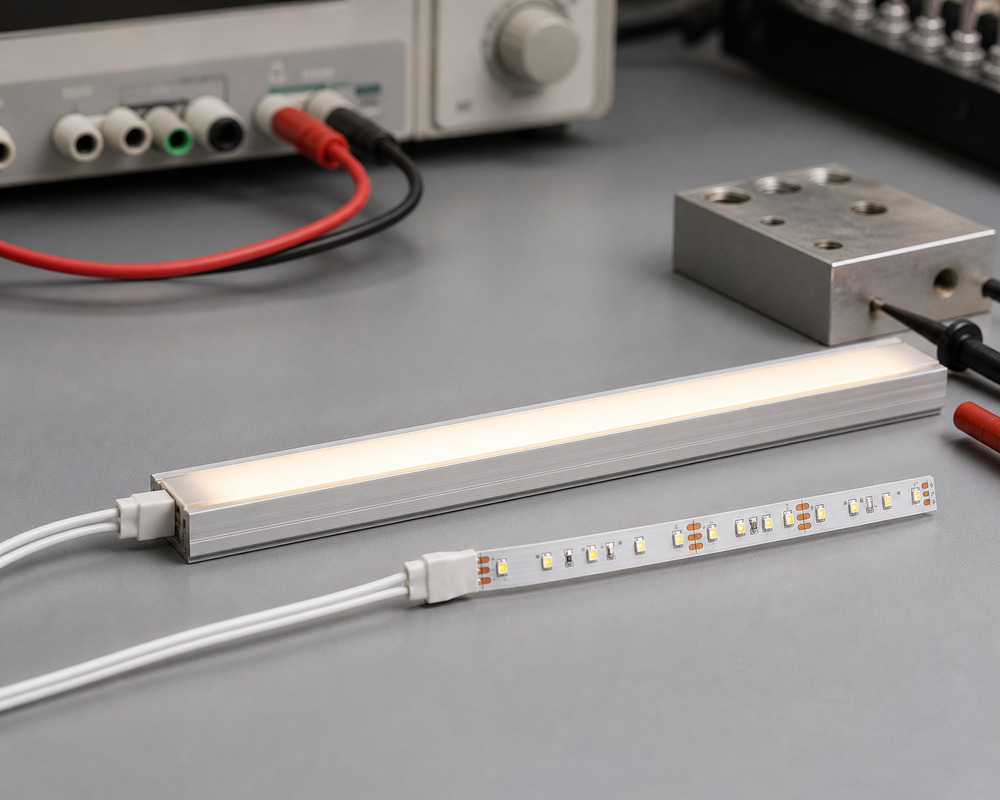

Developing custom LED strip lights means linking circuit segments, feed positions, and connections to the installation. VST brings these elements into a sample assembly, then records the selected board and interface references for manufacturing.
VST work: Engineering connects required section lengths to feasible segments, feed positions, and the fixed power interface.
Stage output: A coherent layout for the flexible circuit.
VST work: VST develops the selected source arrangement and connections into representative wired sections for installed evaluation.
Stage output: A sample assembly including the actual connection envelope.
Customer input: The specific fit or lighting deviation.
VST work: The affected bend, interface, or optical detail is refined while retaining the established circuit boundaries.
Stage output: A focused correction to the installed strip assembly.
VST work: The selected board revision, source requirements, and connection details are recorded with relevant manufacturing references.
Stage output: An identifiable build for subsequent strip orders.
Testing custom LED strip lights in the relevant arrangement exposes differences that a short loose sample may miss. Optical output, installed heat, electrical distribution, and physical connections each require a distinct check.

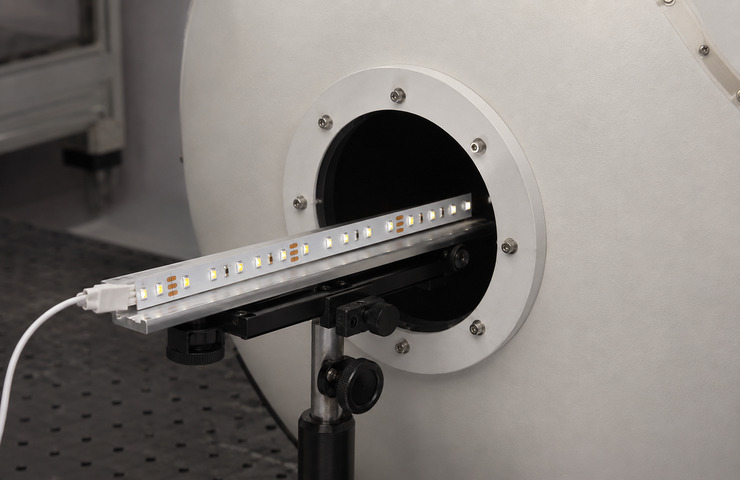

Purpose: Check custom LED strip lights against the defined optical requirements.
Method: Measure the selected sample using an integrating sphere under specified electrical input conditions.
Acceptance criteria: Luminous output and color characteristics for the released construction.
Evidence: Optical records relate to the evaluated sample.

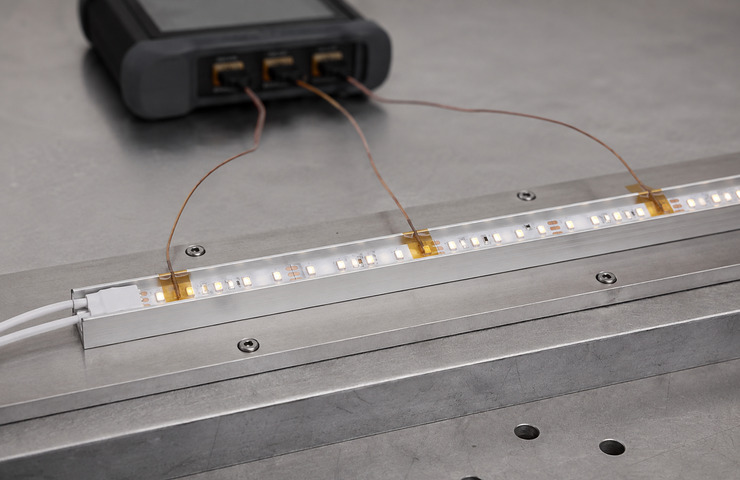

Purpose: Find local heat concentration under representative mounting conditions.
Method: Operate the strip on the intended channel or surface and evaluate relevant temperature locations.
Acceptance criteria: Thermal boundaries for that load, support, and environment.
Evidence: Observations depend on the agreed installation setup.

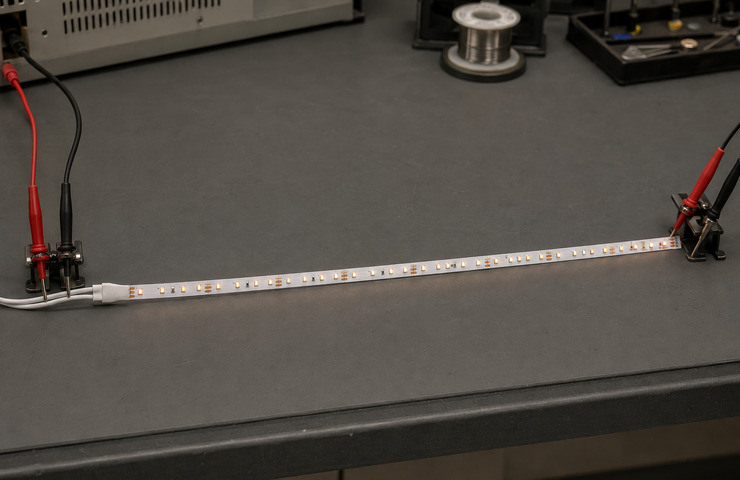

Purpose: Evaluate feed loading, cable losses, and differences along the run.
Method: Power the planned sections through the defined feeds and compare relevant circuit readings.
Acceptance criteria: Electrical behavior against the intended branch and run layout.
Evidence: Recorded readings are specific to that powered arrangement.

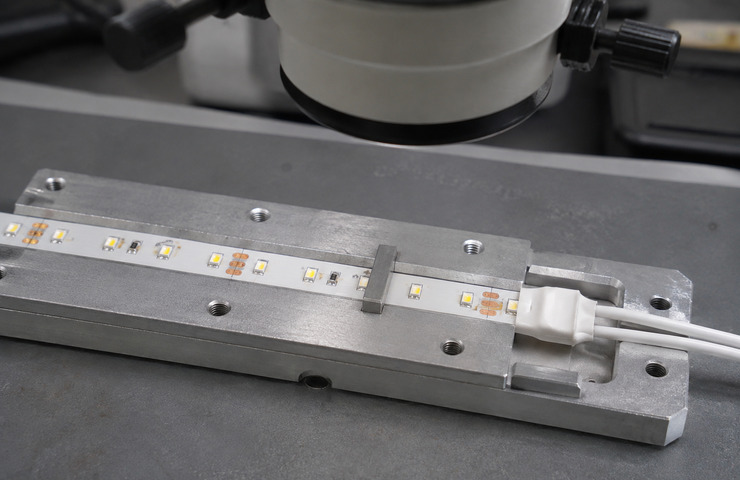

Purpose: Reduce harness interference, polarity errors, and strained lead routing.
Method: Inspect pad placement, section dimensions, connector engagement, and fit within a representative profile.
Acceptance criteria: Board and connection requirements in the assembly definition.
Evidence: Inspection evidence follows the agreed drawing and control points.
Identifies the selected width, segment logic, pad arrangement, and board revision for the order.
Links the intended branches and connectors to their polarity and wiring references.
Associates electrical or thermal observations with the actual mounting and supply arrangement.
For each model, light customization typically begins at 500 units; high customization generally starts at 1,000 units. Existing-platform adaptations differ from substantial PCB, optical, electrical, tooling, or process development. The quotation defines the model, delivery unit, and final quantity for your strip format; do not assume the stated MOQ means metres or reels.
VST provides charged development samples for custom LED strip lights. A new mold, tooling, or dedicated production resource may involve additional expense. A later production order can qualify for repayment or credit of eligible sample costs, according to the amount and method recorded in your project terms. This does not make every sample automatically free.
Light-customization samples normally take 15–25 working days, with bulk production at 20–30. High-customization samples generally require 30–50 working days and bulk production 25–35. Timing begins once necessary technical inputs and applicable fees, deposit, and other order conditions are complete. Stable-demand material preparation can shorten subsequent scheduling, while the actual order plan determines delivery rather than a guaranteed date from these ranges.
New flexible-PCB work, a fixture, mold, profile, or other dedicated resource may create tooling or NRE costs. Where agreed, a later production payment can be reduced by an eligible tooling or mold charge. Project terms specify the qualifying order, credit amount, and application method; not every development expense is fully refundable.
A custom LED strip supplier needs a consistent board revision, light-source requirement, and connector reference for repeat production. VST coordinates suppliers and production checks against that definition. For stable demand, agreed key materials can be prepared or reserved using your forecast to improve availability and replenishment scheduling. Material reservation does not promise finished strips in stock.
Packaging for custom LED strip lights should protect bend limits, exposed connections, and section identification. Order-specific labels and barcodes can distinguish the assemblies, while carton marks, brand artwork, user manuals, and instruction sheets support your presentation. VST offers customized packaging and shipment coordination; freight costs, packing quantities, and transit times depend on the specific consignment.
List each required length and connection variant as an identifiable order item with its own quantity. For custom LED strip lights, metres, reels, and finished wired sections describe different delivery units. The quotation should make that unit explicit and show which items share a model, so the quantity basis is clear before production planning.
The interface and operating behavior may change even if the nominal supply appears similar. For custom LED strip lights, evaluate the replacement against the selected strip and control arrangement.
| Changed detail | Relevant check |
|---|---|
| Channel arrangement | Correct connection and light response |
| Dimming method | Behavior across the required range |
| Power distribution | Loading of the connected sections |
Section-level replacement depends on accessible joins, a compatible circuit segment, and a matching electrical interface. For custom LED strip lights, retain the selected build reference so a replacement can be matched to the installed construction. Permanently bonded or encapsulated assemblies may require a larger section to be replaced; removing one damaged area is not always practical.
Identify the change against the selected build, then evaluate its effect before treating it as interchangeable. A similar component name does not establish the same installed result.
| Changed part | Comparison priority |
|---|---|
| LED source | Color and optical behavior |
| Flexible PCB | Segments, pads, and electrical path |
| Connector | Mating fit and polarity |
Distinguish the finished delivery format, included connections, applicable development charges, and agreed documentation scope. A price for an unwired section is not directly comparable with one for a completed harness assembly. For custom LED strip lights, a clear quotation boundary makes it easier to compare like-for-like supply without assuming that every accessory or project record is included.
Relate the symptom to a location and operating condition. A dark section, brightness gradient, or control problem points to different parts of the system. Record which section is affected and whether the behavior changes with the original supply or control setup. Keep the actual wiring arrangement identifiable rather than describing every fault as a strip-quality issue.
